MNS Series

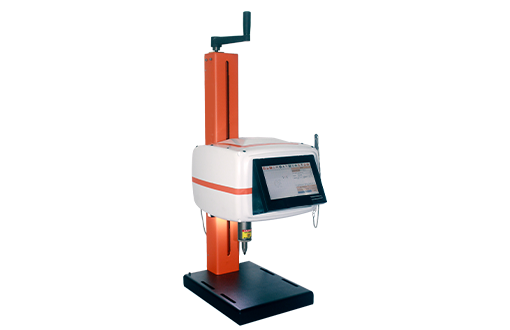

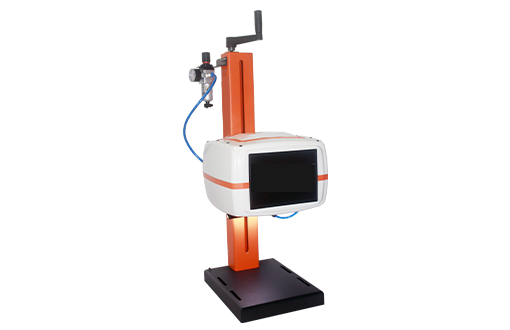

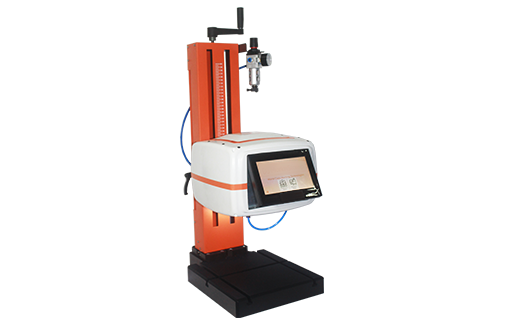

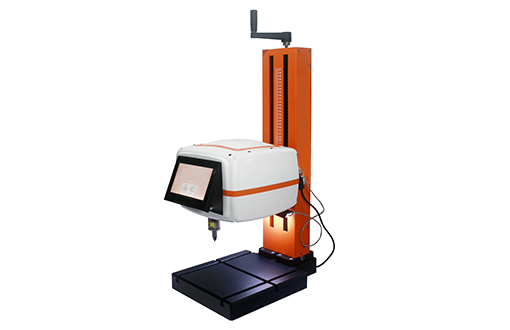

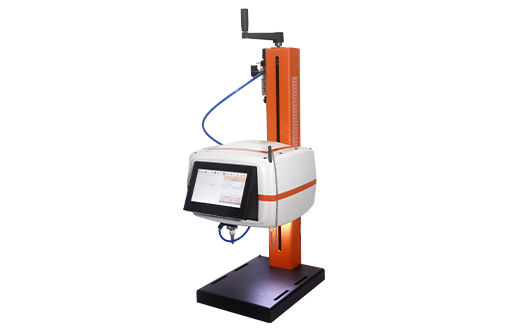

Table top dot peen Marking machineHigh-quality pneumatic & magnetic Table top marking machine for deep and permanent marking
MNS TCFeatures
Versatility- Wide marking area: 100X120mm - Pneumatic or electric version machines available as per application requirement - 400mm height holding stand to accommodate most of the parts - LED light provided to check marking location - Ethernet and Wi-Fi connectivity with Windows PC/Laptop
MNS HTC- Touchscreen input or PC software connection - Simple User interface - Straight line, angular, circular marking - English, numbers, text, logo, barcode marking - CSV file marking, barcode printer interface, marking log history management - Different marking depths for each block with 1 to 9 force dodes
MNS-PC- All-in-one control head - Modular Electronic construction for easy and economical maintenance - Bellows option to prevent dust and foreign substances
Various optional accessories- Rotary device for round materials - Z-axis motorised Column option for automatic height adjustment - Name Plate Clamping Device - Automatic Name plate feeder
Machine specifications
| MNS-HTC / EMHTC | MNS-TC / EMTC | MNS-PC / EMPC | |
|---|---|---|---|
| Type | Pneumatic or electric Table top marking machine | ||
| Marking area | 120x100mm | ||
| Size | 365x295x400mm | 330x295x843mm | 330x295x843mm |
| Weight | 42kg | 34kg | 23kg |
| Controller | Built-in controller Touchscreen | Simple touch | PC software connection |
| Stand type | CF-17 Heavy Duty | CF-01 basic stand | |
| Column height | 400mm | ||
| Language | Over 20 languages supported including Korean | ||
| Power | 24VDC 5A power adaptor | ||
| Communication | I/O, RS232, ethernet | ||
Accessories
| Photo | Product | Application | ||
|---|---|---|---|---|
|
Head tilting attachment | Other than flat plate shape | View | Inquiry |
|
180˚ rotating Fixture for CF01 | Bulk Material Marking | View | Inquiry |
|
Automatic Name plate feeder | Nameplate | View | Inquiry |
|
Small Rotary device | Rotary Flanges | View | Inquiry |
|
Big Rotary device | circular part | View | Inquiry |
|
Pneumatic Name plate Clamping Device | Nameplate | View | Inquiry |
|
Manual-type Name plate Clamping Device | Nameplate | View | Inquiry |
