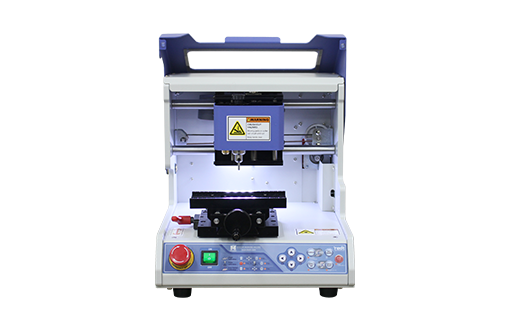

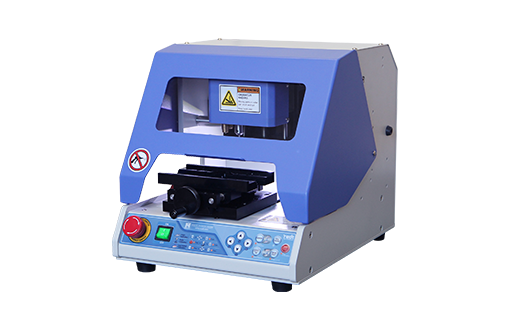

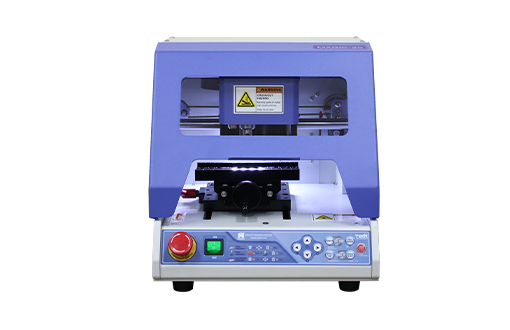

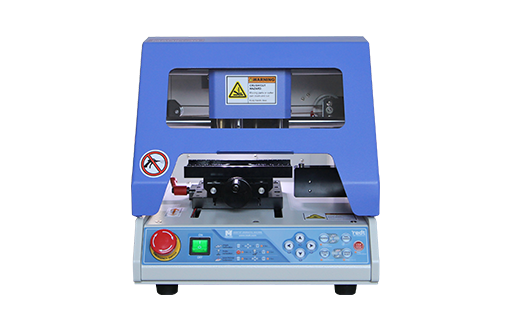

IMP Series

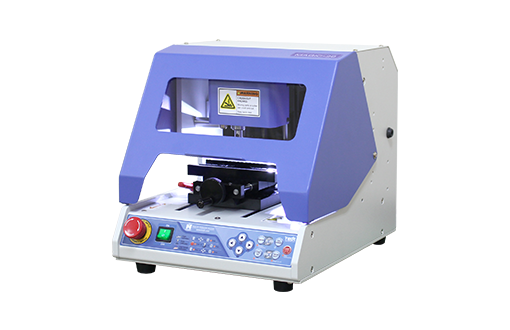

Mini-sized Nameplate engraving machineperfect solution for marking or engraving industrial materials. It is easy to use with acoustic noise level, neat design, compact size and provides easy manual that anyone can acess to engraving. It is a multi-purpose engraver that allows marking and engraving on industrial metal name plates, various metal materials, acryls, timbers and etc.

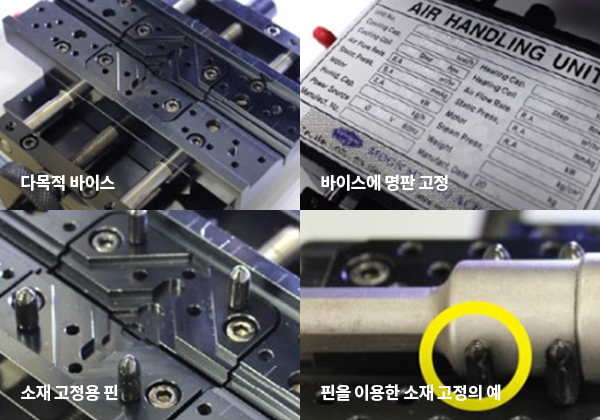

- Variously and irregularly shaped materials can be easily placed with the pin - Quick and easy to replace target materials Multi-purpose clamp/ Name plate is fixed onto the clamp / A pin to fix the material / Example of using the pin to fix the material

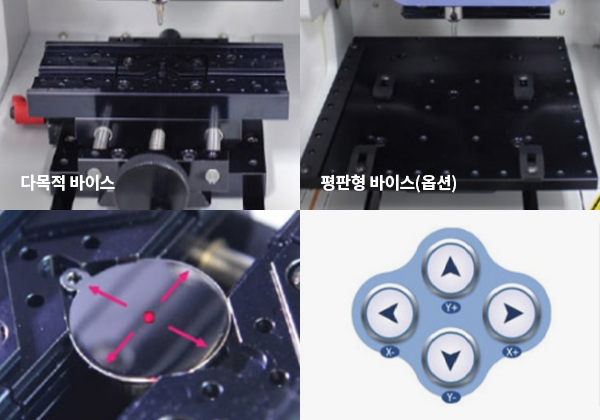

- Detachable clamp, also comes with various types of clamp for many purposes and establishes perfect engraving environment
Laser pointer- Embedded laser-pointer makes it easier to locate and adjust the engraving spot and prevents errors

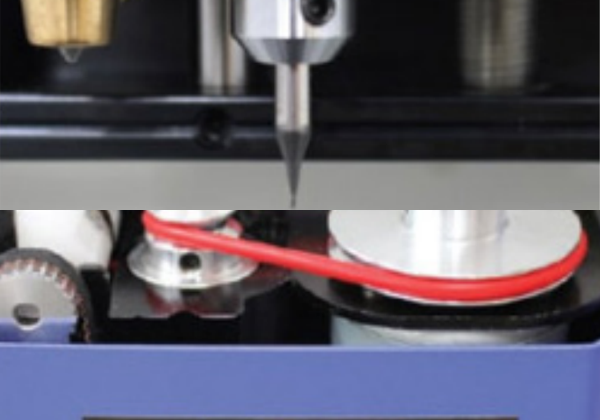

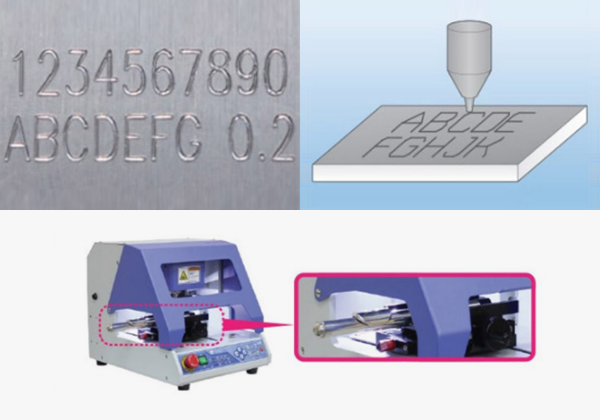

- Using highly durable diamond tool to scribe marking on various materials

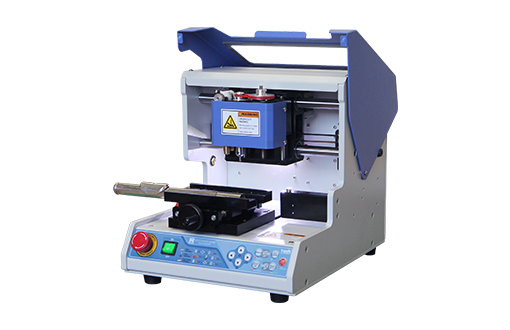

Open left side- Left side of the engraver is opened for easy marking on long materials like pipes
- With embedded spindle and cutting tools like end-mill, v-cutter, various types of materials can be easily engraved
specification
| IMP-20 | IMP-30 | IMP-300 | IMP-350 | |
|---|---|---|---|---|
| Feature | Small Name plate engraving machine | Maximum material height on vice 40mm | Maximum material height on vice 80mm | Built in Automatic lubrication system |
| Size | 288x303x355mm | 288x303x355mm | 470x375x455mm | 470x375x455mm |
| Workspace | 130x116x30mm | 130mmx116mmx30mm(z) | 300x200x38.5(Z)mm | 300x200x38.5(Z)mm |
| Resolution | 0.005mm (XY) / 0.00125mm(Z) | (XY)0.005mm/(Z)0.00125mm | ||
| Tool diameter | 4mm | |||
| Weight | 24.6Kg | 24.6Kg | 38.5kg | |
| Rotation count | - | 12,000rpm | 10,000 ~ 14,000rpm | |
| Spindle Power | - | 14.7W | 27W | |
| Power consumption | 12W | 30W | 50W | |
| Power | AC 100~240V 50/60Hz | |||
